Convert a React Component to Vue.js

Cody Bontecou

·

Follow

Published in

JavaScript in Plain English

·

5 min read

·

Sep 9, 2021

--

Listen

Share

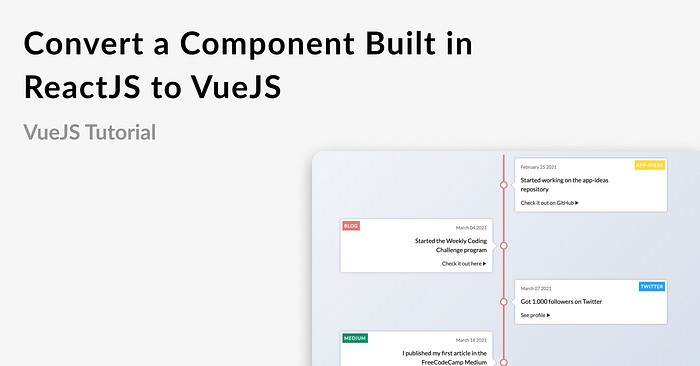

In this tutorial, we’re going to rewrite a Timeline component built in React by Florin Pop to Vue.js. You can see the component in action here.

Scaffold your Vue.js app using Vite

I try to use Vite whenever given the opportunity.

It increases development speed by an incredible amount due to features such as Instant Server Start and Lightning Fast HMR (Hot Module Replacement).

1. Let’s init our project:

npm init vite@latest

1. Follow the prompt and select vue as our framework and as our variant.
2. cd into the generated directory and install the dependencies with npm install.
3. Run your new Vite + Vue.js project using npm run dev.

Building the Vue.js Component

Now, the fun stuff. Let’s work on converting the React code.

App.vue looks very similar to the React version:

// App.vue
<script setup>
import Timeline from './components/Timeline.vue'
</script>

<template>
  <Timeline />
</template>// React Version
const App = () => (
  <>
    <h1>React Timeline</h1>
    <Timeline />
  </>
)

The key difference here is the template tag, an essential part of Vue.js syntax.

Lets now dig into the Timeline component — Timeline.vue

The Timeline component is where the data gathering and container occur.

In this example, we are gathering the data from our local data.json file. It shouldn't require too much additional work to get this component to work with live data using a package such as axios.

While the React version takes up less vertical space, the Vue.js version is much easier to read. Rather than applying an inline map function, we use a v-for to apply the same functionality.

Vue.js attaches dynamic data a property called v-bind. The shorthand for v-bind is :. As you can see :data=data is the Vue.js equivalent to data={data}.

Also note, Vue.js doesn’t use className to apply its CSS. Instead, you can use the classic class keyword.

// React Version
const Timeline = () =>
  timelineData.length > 0 && (
    <div className="timeline-container">
      {timelineData.map((data, idx) => (
        <TimelineItem data={data} key={idx} />
      ))}
    </div>
  )// components/Timeline.vue

<template>
  <div class="timeline-container">
    <TimelineItem v-for="(data, idx) in timelineData" :data="data" :key="idx" />
  </div>
</template>

<script>
import json from '../assets/data.json'
import TimelineItem from './TimelineItem.vue'

export default {
  components: {
    TimelineItem,
  },
  data: () => ({
    timelineData: json,
  }),
}
</script>

Here’s an example of what the data looks like:

[
  {
     "text": "Started working on the app-ideas repository",
     "date": "February 25 2021",
     "category": {
        "tag": "app-ideas",
        "color": "#FFDB14"
     },
     "link": {
        "url": "https://github.com/florinpop17/app-ideas",
        "text": "Check it out on GitHub"
     }
  },
  ...
]

Converting the TimelineItem Component to Vue.js

The TimelineItem Component is where the majority of the UI logic is taking place. We are now playing with the data we gathered within the Timeline component.

There isn’t much happening outside of destructing the data object and styling as needed.

We destructure data in Vue.js differently than in React.

• When using the data between two HTML elements, you must destructure it using two curly brackets {{}}
• When accessing the data within a v-bind:, you destructure it using single curly brackets {data}
• When accessing the data within a directive such as v-if, you type in the data v-if="data"

const TimelineItem = ({ data }) => (
  <div className="timeline-item">
    <div className="timeline-item-content">
      <span className="tag" style={{ background: data.category.color }}>
        {data.category.tag}
      </span>
      <time>{data.date}</time>
      <p>{data.text}</p>
      {data.link && (
        <a href={data.link.url} target="_blank" rel="noopener noreferrer">
          {data.link.text}
        </a>
      )}
      <span className="circle" />
    </div>
  </div>
)// components/TimelineItem.vue
<template>
  <div class="timeline-item">
    <div class="timeline-item-content">
      <span class="tag" :style="{ background: `${data.category.color}` }">
        {{ data.category.tag }}
      </span>
      <time>{{ data.date }}</time>
      <p>{{ data.text }}</p>
      <a
        v-if="data.link"
        :href="data.link.url"
        target="_blank"
        rel="noopener noreferrer"
      >
        {{ data.link.text }}
      </a>
      <span class="circle" />
    </div>
  </div>
</template>

<script>
export default {
  props: {
    data: {
      type: Object,
      required: true,
    },
  },
}
</script>

<style></style>

Additional Vue.js config

To get the CSS provided below to style our component, we need to expose the CSS to work within our Vue.js application. For this example, I placed an import statement within my main.js file.

import { createApp } from 'vue'
import App from './App.vue'

import './assets/main.css'

createApp(App).mount('#app')

Styling the component using CSS

For this component, I am using the main.css file placed within our assets directory. Here is the CSS used within this component:

/* assets/main.css */
@import url('https://fonts.googleapis.com/css?family=Lato');

* {
  box-sizing: border-box;
}

body {
  background-image: linear-gradient(135deg, #f5f7fa 0%, #c3cfe2 100%);

  display: flex;
  align-items: center;
  justify-content: center;
  flex-direction: column;

  min-height: 100vh;
  font-family: 'Lato', sans-serif;
  margin: 0;
}

h1 {
  text-align: center;
}

#app {
  padding: 0 20px;
  width: 100%;
}

.timeline-container {
  display: flex;
  flex-direction: column;
  position: relative;
  margin: 40px 0;
}

.timeline-container::after {
  background-color: #e17b77;
  content: '';
  position: absolute;
  left: calc(50% - 2px);
  width: 4px;
  height: 100%;
}

.timeline-item {
  display: flex;
  justify-content: flex-end;
  padding-right: 30px;
  position: relative;
  margin: 10px 0;
  width: 50%;
}

.timeline-item:nth-child(odd) {
  align-self: flex-end;
  justify-content: flex-start;
  padding-left: 30px;
  padding-right: 0;
}

.timeline-item-content {
  box-shadow: 0 0 5px rgba(0, 0, 0, 0.3);
  border-radius: 5px;
  background-color: #fff;
  display: flex;
  flex-direction: column;
  align-items: flex-end;
  padding: 15px;
  position: relative;
  width: 400px;
  max-width: 70%;
  text-align: right;
}

.timeline-item-content::after {
  content: ' ';
  background-color: #fff;
  box-shadow: 1px -1px 1px rgba(0, 0, 0, 0.2);
  position: absolute;
  right: -7.5px;
  top: calc(50% - 7.5px);
  transform: rotate(45deg);
  width: 15px;
  height: 15px;
}

.timeline-item:nth-child(odd) .timeline-item-content {
  text-align: left;
  align-items: flex-start;
}

.timeline-item:nth-child(odd) .timeline-item-content::after {
  right: auto;
  left: -7.5px;
  box-shadow: -1px 1px 1px rgba(0, 0, 0, 0.2);
}

.timeline-item-content .tag {
  color: #fff;
  font-size: 12px;
  font-weight: bold;
  top: 5px;
  left: 5px;
  letter-spacing: 1px;
  padding: 5px;
  position: absolute;
  text-transform: uppercase;
}

.timeline-item:nth-child(odd) .timeline-item-content .tag {
  left: auto;
  right: 5px;
}

.timeline-item-content time {
  color: #777;
  font-size: 12px;
  font-weight: bold;
}

.timeline-item-content p {
  font-size: 16px;
  line-height: 24px;
  margin: 15px 0;
  max-width: 250px;
}

.timeline-item-content a {
  color: #333;
  text-decoration: none;
  font-size: 14px;
  font-weight: bold;
}

.timeline-item-content a::after {
  content: ' ►';
  font-size: 12px;
}

.timeline-item-content .circle {
  background-color: #fff;
  border: 3px solid #e17b77;
  border-radius: 50%;
  position: absolute;
  top: calc(50% - 10px);
  right: -40px;
  width: 20px;
  height: 20px;
  z-index: 100;
}

.timeline-item:nth-child(odd) .timeline-item-content .circle {
  right: auto;
  left: -40px;
}

@media only screen and (max-width: 1023px) {
  .timeline-item-content {
    max-width: 100%;
  }
}

@media only screen and (max-width: 767px) {
  .timeline-item-content,
  .timeline-item:nth-child(odd) .timeline-item-content {
    padding: 15px 10px;
    text-align: center;
    align-items: center;
  }

  .timeline-item-content .tag {
    width: calc(100% - 10px);
    text-align: center;
  }

  .timeline-item-content time {
    margin-top: 20px;
  }

  .timeline-item-content a {
    text-decoration: underline;
  }

  .timeline-item-content a::after {
    display: none;
  }
}

footer {
  background-color: #222;
  color: #fff;
  font-size: 14px;
  bottom: 0;
  position: fixed;
  left: 0;
  right: 0;
  text-align: center;
  z-index: 999;
}

footer p {
  margin: 10px 0;
}

footer i {
  color: red;
}

footer a {
  color: #3c97bf;
  text-decoration: none;
}

Additional Resources

• Github Repository with source code — https://github.com/CodyBontecou/timeline-component-vuejs
• Florin Pop made a YouTube video walking through building this component using React.
• React Codepen
